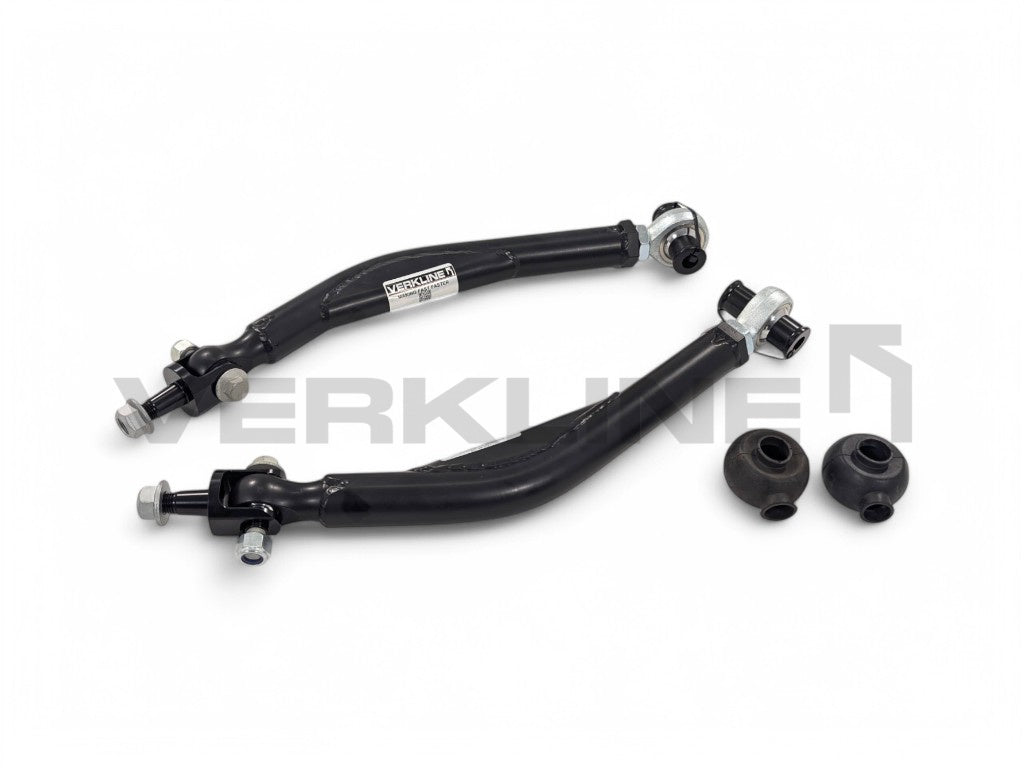

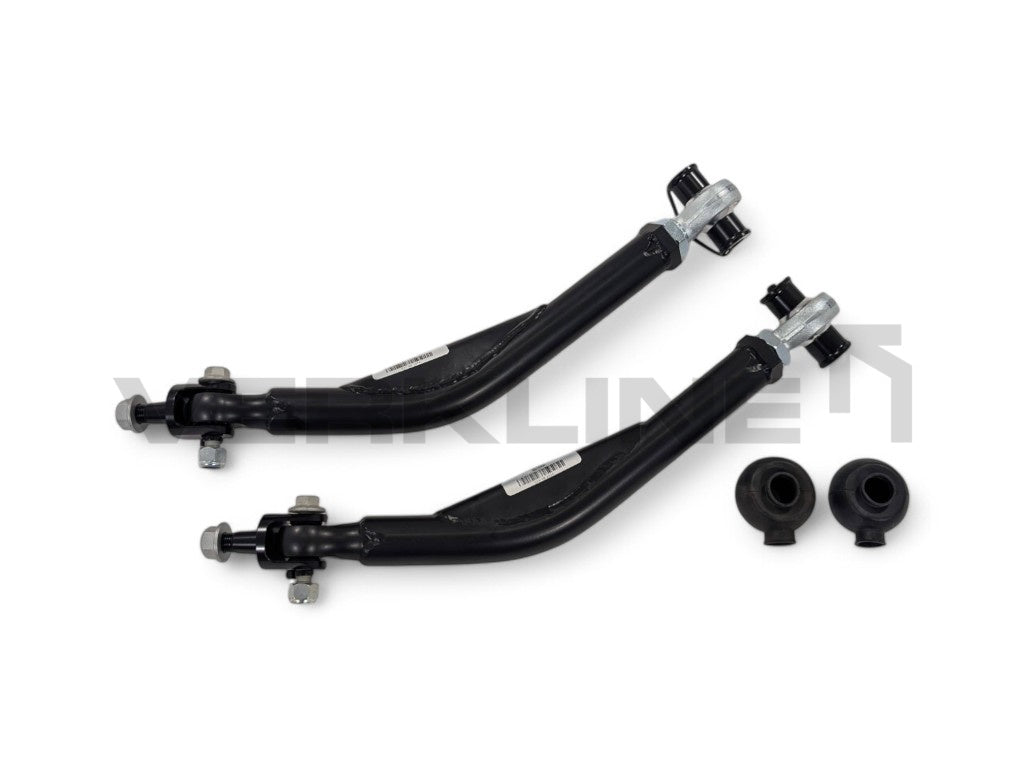

Mitsubishi Lancer EVO X – REAR LONGITUDINAL ARM (Adjustable Rear Outrigger Arm)
The kit consists of all the parts visible in the pictures:
– Two rear light steel T45 35 mm outrigger wishbones (left + right)
– Two arm fixing C45 steel mounts
– Two M22 rod ends solid kevlar (motorsport rod ends)
– Two M22 half-size screw locking nuts
– Two uni-ball bearings (motorsport rod ends)
– Eight spacer sleeves for assembling of the arms in the rear subframe
Features:
– R4 spec rear suspension arm
– Comes preassembled ready for fitment in the car
– R4 rally kit compliant (meats FIA homologation rules for Lancer EVO X)
– Same rod end suppler as for original R4 kit
– Can be used with standard rear chassis and uprights pickup points
– Greater strength over OEM wishbones
Technical details
– Full 3D CAD designed
– FEA tested and additional reinforcement to the original design was made
– Manufactured from T45 steel
– Powder painted black
Wishbones are powder painted in black as standard.
Rear Longitudinal Arm ( CE114-117 ) - 2 pcs | |||
pcs | |||
1 | CE114-168 | Rear Fork on hub | 1 |
2 | RG14MTE.MM29 | Rodobal 29-14 | 1 |
3 | RM22XE.C0 | Rodobal M22x1,5 | 1 |
4 | CE114-186 | Complete longitudinal rod | 1 |
5 | CE114-182 | Longitudinal link adapter on frame | 2 |
6 | CE114-185 | Longitudinal link adapter on chassis | 2 |
9 | CE114-202 | Nut M22x1.5 | 1 |
10 | Seeger-SB29 | Seeger SB29 | 1 |
