Rear Toe Arms R4 - Lancer EVO X
Rear Toe Arms R4 - Lancer EVO X
Rear Toe Arms R4 - Lancer EVO X

Rear Toe Arms R4 - Lancer EVO X

was-809
Regular price $849.00
Unit price  per

OUT OF STOCK.


Mitsubishi Lancer EVO X Toe Links

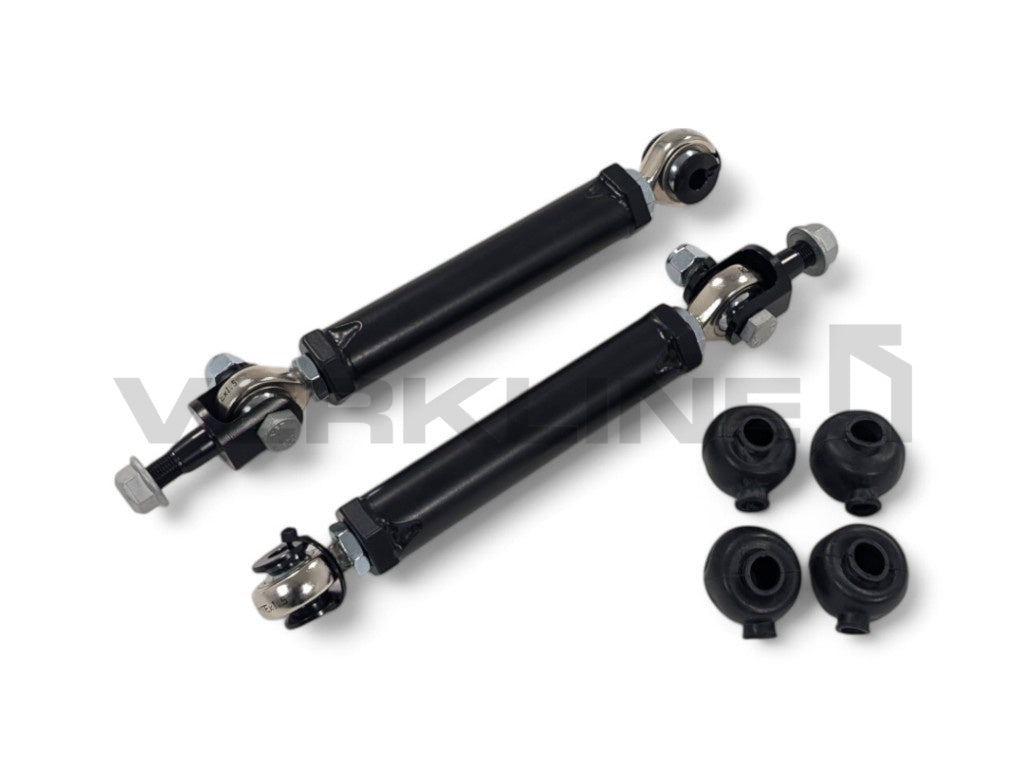

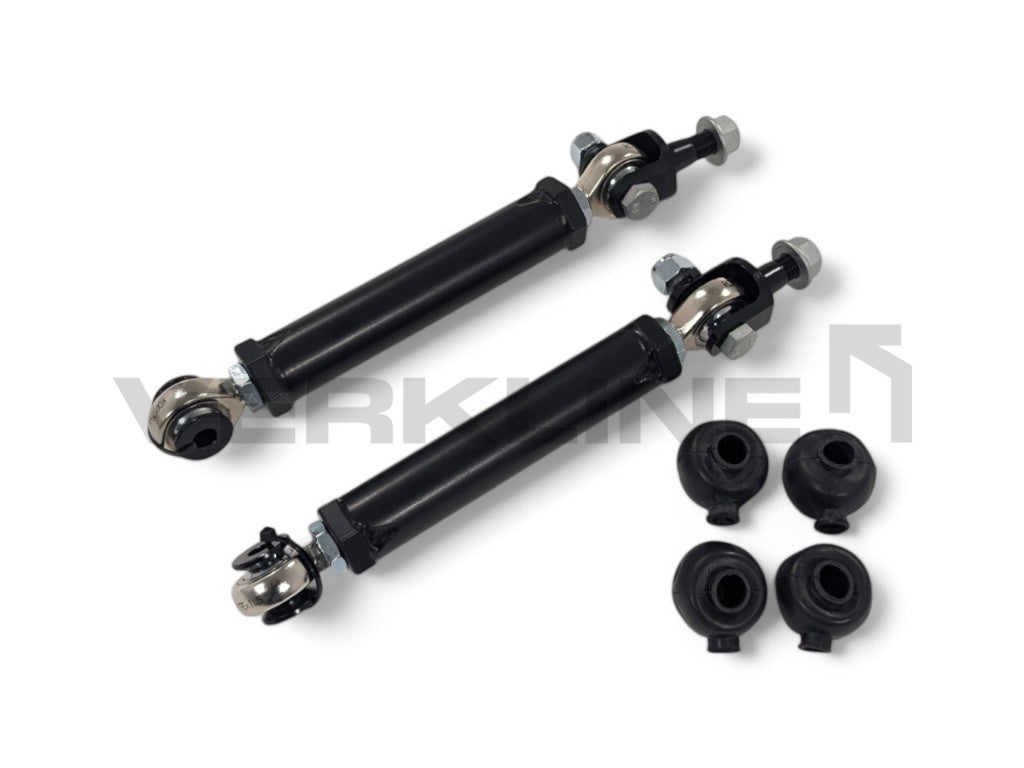

The kit consists of all the parts visible on the pictures:
– Rear light steel T45 35 mm rear toe link wishbones (left + right)
– Two arm fixing C45 steel mounts
– Four M16 motorsport rod ends solid
– Four M16 half size screw locking nuts
– Four spacer sleeves for assembling the arms in the rear subframe

Features:
– R4 spec rear suspension arm
– Comes preassembled ready for fitment in the car
– R4 rally kit compliant (meats FIA homologation rules for Lancer EVO X)
– Same rod end suppler as for original R4 kit
– Allows massive increase in toe adjustment
– Greater strength over OEM wishbones

Technical details
– Full 3D CAD designed
– FEA Tested and additional reinforcement to the original design was made
– Manufactured from T45 steel
– Powder painted black

Notice: Works only with R4 rear subframe WAS-816 or equivalent.

lancer-evo-x-r4-toe-arm-CE114-112
Rear Toe Arm Assembley ( CE114-112 ) - 2 pcs
pcs
1 CE114-168 Rear Fork on hub 1
2 RM16MTEx1,5 Rodobal con gambo maschio M16x1,5 RH 1
3 RML16MTEx1,5 Rodobal con gambo maschio M16x1,5 LH 1
4 CE114-177 Camber rod adapter on frame 2
5 CE114-181 Nut M16x1.5 LH 1
6 CE114-180 Nut M16x1.5 RH 1
7 CE114-183 toe rod adapter on upright 2
8 CE114-160 Complete toe rod 1
