Rear Adjustable Toe Links with lockout kit Toyota Supra A90 A91

WAS-424 Fitting Instructions

After an extensive development and testing program, we made those rear adjustable toe links available to everyone. The car was 3D laser scanned, the wishbone was CAD developed, we have tested the CAD model with FEA (Finite element method) and performed road-going tests so you can now buy our rear adjustable toe links.

     Benefits:

• • On the upright side there is double adjuster (turnbuckle) for easy toe adjustments
  • Delivered with lockout plates to block wishbone movement on subframe
  • Increased strength and rigidity for improved handling performance
  • No rubber to bend, you will not lose the geometry set when doing alignment or in the corner when pushing for max G-force

  Features:

  • This is a bolt-in kit, no modifications necessary to the car
  • Wishbone comes pre assembled, with initially predefined length
  • Made from T45 (BS4T45 to BS4T100) tubing imported directly from the steel mill
  • High quality motorsport uniballs
  • Delivered with uniballs rubber boots for dust and water protection, which provides even better longevity
  • Includes all necessary parts to mount on the car
  • Can be used with OEM knuckle and subframe

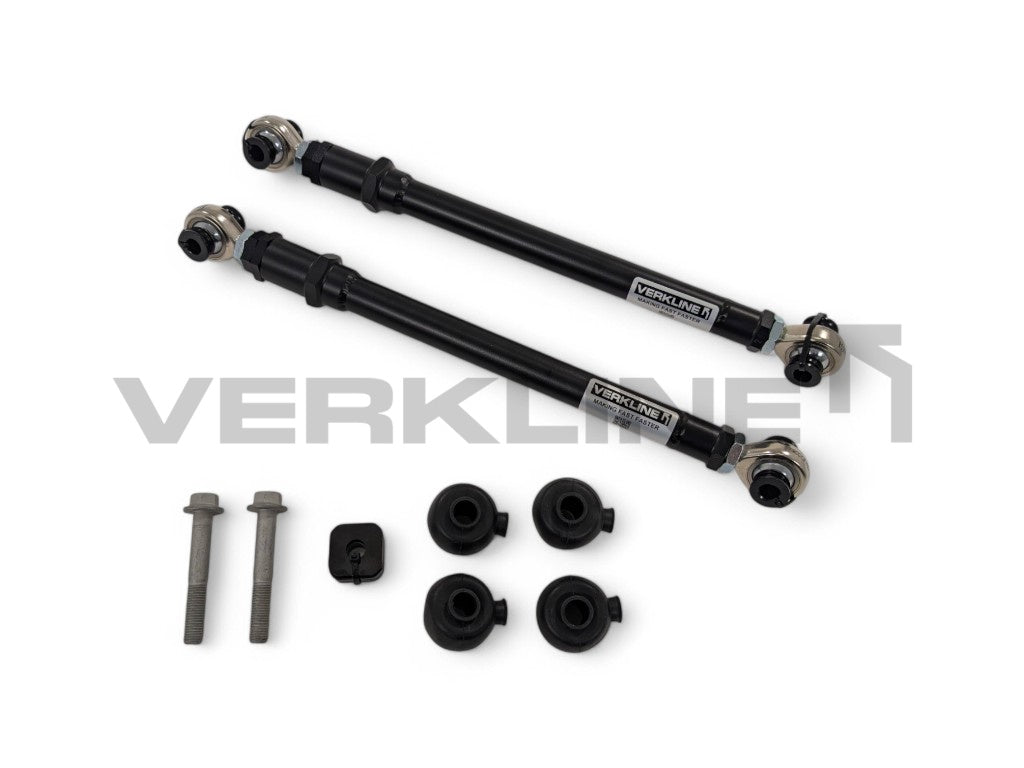

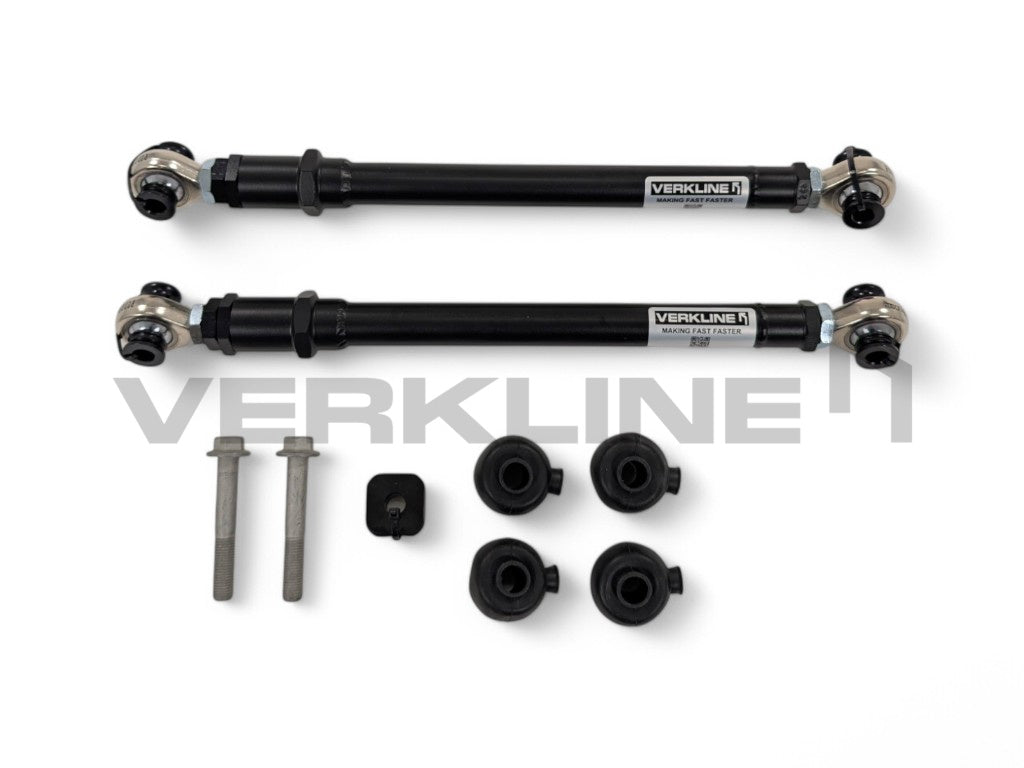

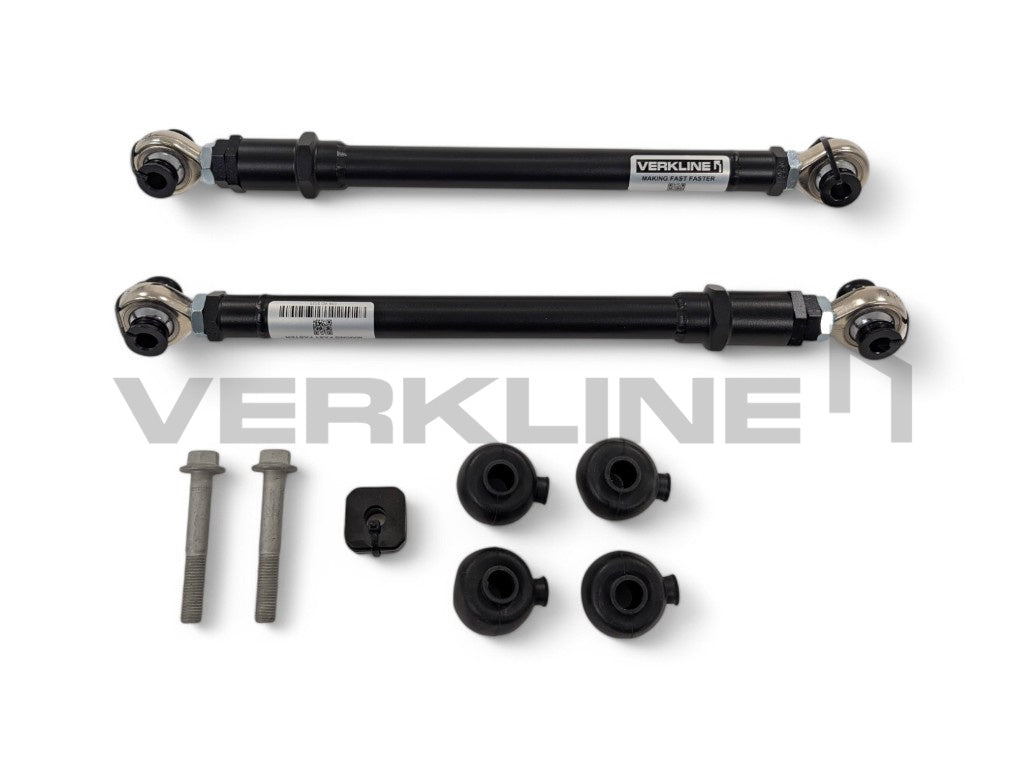

  What’s included:

  • two (pair) T45 lightweight steel arms
  • Thin locking nuts
  • High quality motorsport uniballs
  • Spacer sleeves for assemble of the arm with subframe and upright
  • Rubber uniball boots for dust protection
  • Printed install instructions

Used in: - BMW 3 Series G20 Limousine - BMW 3 Series G21 Touring - BMW Z4 G29 - Toyota Supra A90 - Toyota Supra A91 Replaces: - 31106879659 - 48705-WAA01

Notice: Sold for off-road, track, and racing applications only. Mounting the wishbone may increase some noise, vibration, and harshness (NVH) in the car. We strongly advise mounting the subframe in qualified and experienced workshops.
