Rear fully adjustable control arms uniball Audi TT TTS TTRS 8J 8S RS3 S3 A3 8P 8V 8VFL Golf Mk5 Mk6 Mk7 Scirocco

WAS-048 Fitting Instructions

When using the car on track it is impossible to set up proper rear camber with OEM arms. The more stress you put on the OEM arms the more the rubber on arm compresses and you lose what was very precisely set during car alignment. Now it is possible to easily set up and maintain desired camber on your track car.

For that reason, we have come up with rear adjustable control arms that use metal to metal uniball and spherical joints just like used in the Porsche RS line (GT2RS, GT3RS). Tested intensively on our Track TTRS.

Product functionalities:
– adjustment of the wishbone angle done without removal of the wishbone from the car. Most of the other products require the removal of the wishbone for adjustment. It is a very time consuming drudging setup of the car in a workshop during a wheel alignment
– possibility of pushing up to -4 negative camber for maximum track abuse
– no rubber to bend, you will not lose the geometry set when doing wheel aliment
– lockout plates to block wishbone movement on OEM subframe

Features:
– CNC machined from 7075 aluminum and anodized in black
– M16 left-hand rod end and M16 uniball
– M24 rotating clamp for easy adjustment during a wheel alignment
– metal bushings galvanized in black
– fixing for the brake hose
– polyurethane pads for correct control arms positioning
– rubber ends to protect M16 rod ends
– eccentric lockout plates (two positions – 4 pcs central and 4 pcs +5 mm setting)

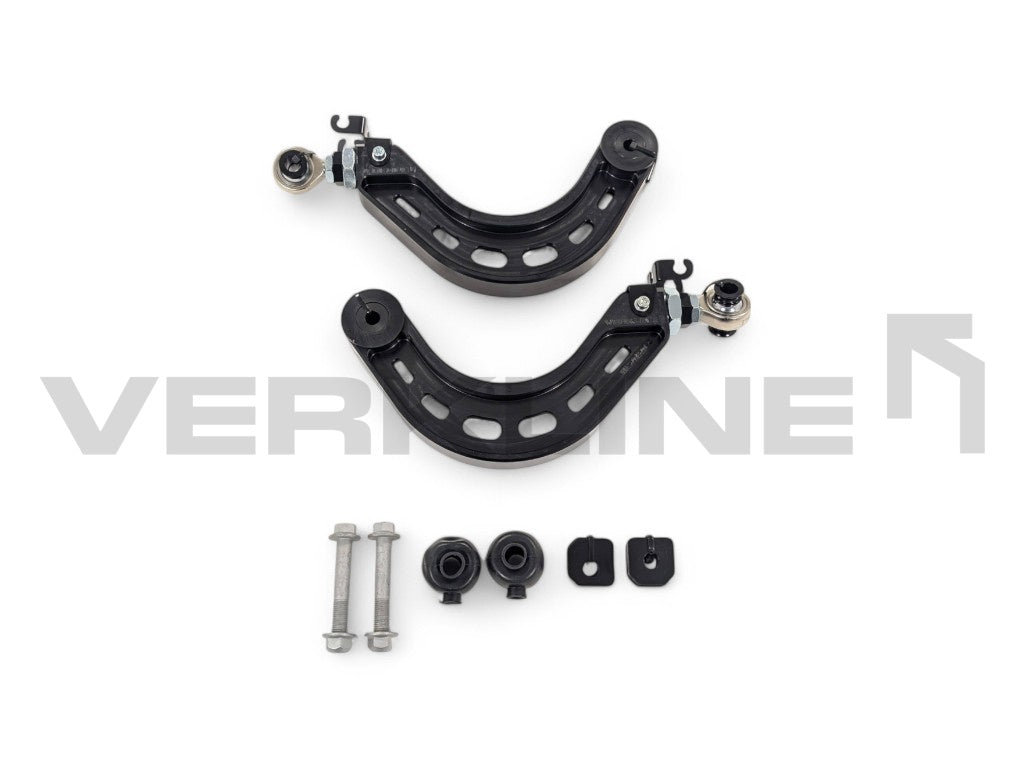

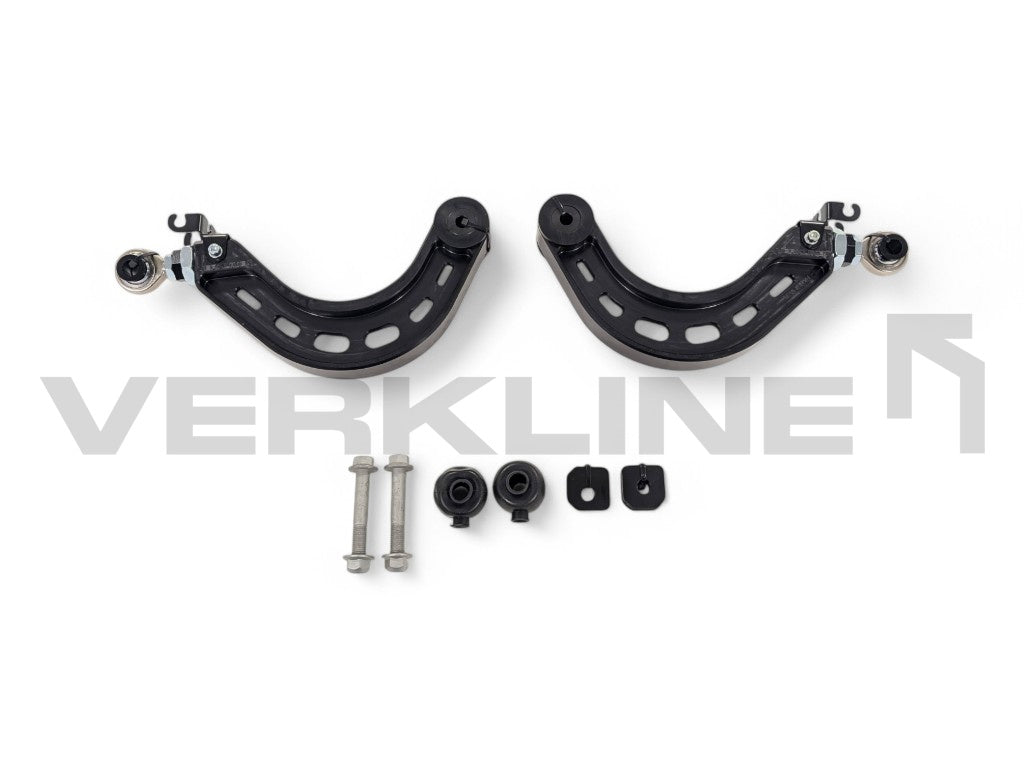

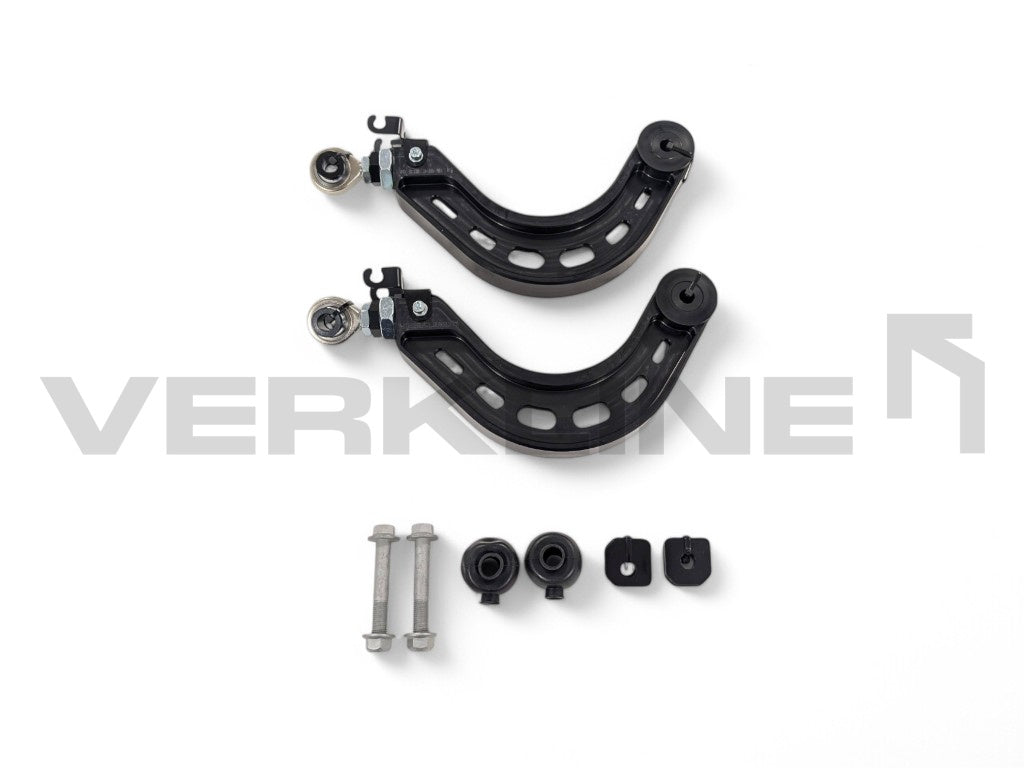

What is included:
– pair of rear adjustable control arms
– 2 pcs of rose joint rubber dust protection sealing boots
– 8 pcs of eccentric lockout washers
– printed install instructions

Used in cars (type numbers in brackets):

• 2005 – 2013 Audi A3/S3/RS3 (8P)
• 2015 – Now Audi A3/S3/RS3 (8V/8V.5)
• 2007 – 2013 Audi TT/TTS/TTRS (8J)
• 2015 – Now Audi TT/TTS/TTRS (8S)
• 2007 – 2009 Volkswagen Eos (MkV)
• 2010 – 2013 Volkswagen Eos (MkVI)
• 2006 – 2009 Volkswagen Jetta/GTI/GLI/Rabbit/R32 (MkV)
• 2010 – 2014 Volkswagen Golf/GTI/Rabbit/R (MkVI)
• 2015 – 2020 Volkswagen Golf/GTI/R (Mk7)
• 2029 – Now Volkswagen Golf/GTI/R (Mk8)
• 2006 – 2013 Volkswagen Passat
• 2008 – 2013 Volkwagen Tiguan
• 2010 – 2015 Volkswagen Jetta/GLI (MkVI)

Replaces:
– 1K0505323N / 1K0 505 323N
– 5Q0505323C / 5Q0 505 323C

Note: Sold for off-road, track, and racing applications only. Installation of this rear trailing arm kit will introduce some additional NVH (noise, vibration, and harshness) transfer into the cabin.
