Spherical adjustable PQ35 Rear Trailing Arm Kit Audi RS3 S3 A3 8P Golf Mk5/6 Audi TT 8J Seat Leon 1P

WAS-040 Fitting Instructions

Anti-squat suspensions are used to reduce body squat by altering the rear suspension so that the forces resulting from accelerating pass through the control arms and suspension linkage rather than through the coil overs or struts.

In PQ35 cars, rear suspension we can define our anti-squat by an inclination of a line that connects the wheel center and chassis mounting point of the trailing arm. Most of the cars are lowered with aftermarket suspension components. In the picture below the car is lowered and the OEM wishbone (and our +0 setup) in MQB car has an anti-squat line pointing down (red line), which means that the car has a negative anti-squat value. It causes excessive suspension displacement under acceleration and reduces responsiveness.

To correct this we have come up with an adjustable rear trailing arm. When the wishbone in the car is used in +20 setup anti-squat value (green line) is corrected and it is back to factory settings.

If the car wishbone is used in +40 setup anti-squat value (blue line). It makes suspension move even less, thus resulting in a faster response of the car from a standstill or when exiting the corner. Also when there is less suspension movement camber and toe are less affected (better predictability of the car).

With the increase of anti-squat, You also get higher values of rear anti-lift. It keeps Your rear suspension low under braking, which increases grip and car predictability. This allows You to brake later and go into a corner with higher speed and confidence.

Product functionalities:
– 3 position anti-squat and anti-lift adjustability (0, +20, +40)
– OEM wishbone bends during normal operation and this increases when the car is lowered or camber/toe is increased. Our CNC billet wishbone has spherical bearings to avoid that and it is also a big increase of stiffness results in better handling in corner exit and under acceleration.
– High-quality, metal spherical bearings instead of rubber bushings, so You will not lose the geometry set when doing an alignment.
– Same weight as OEM regarding additional functionality

Because of the adjustable design, it is necessary to use dedicated rear sway bar adjustable end links. OEM and other aftermarket rear-end links will not work.

Features:
– This is a bolt-in kit, no modifications are necessary to the car.
– Wishbone comes pre-assembled.
– CNC machined arm out of billet aluminum.
– TIG-welded high-strength steel mountings.
– parking brake line brackets.
– Includes all necessary parts to mount on the car.

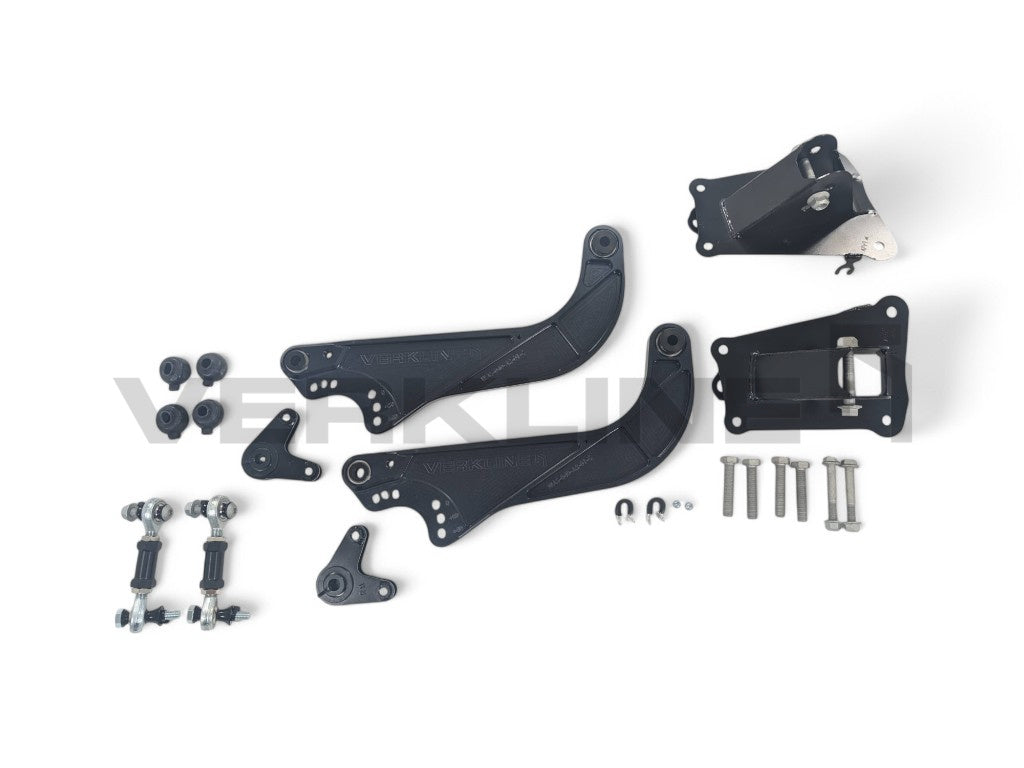

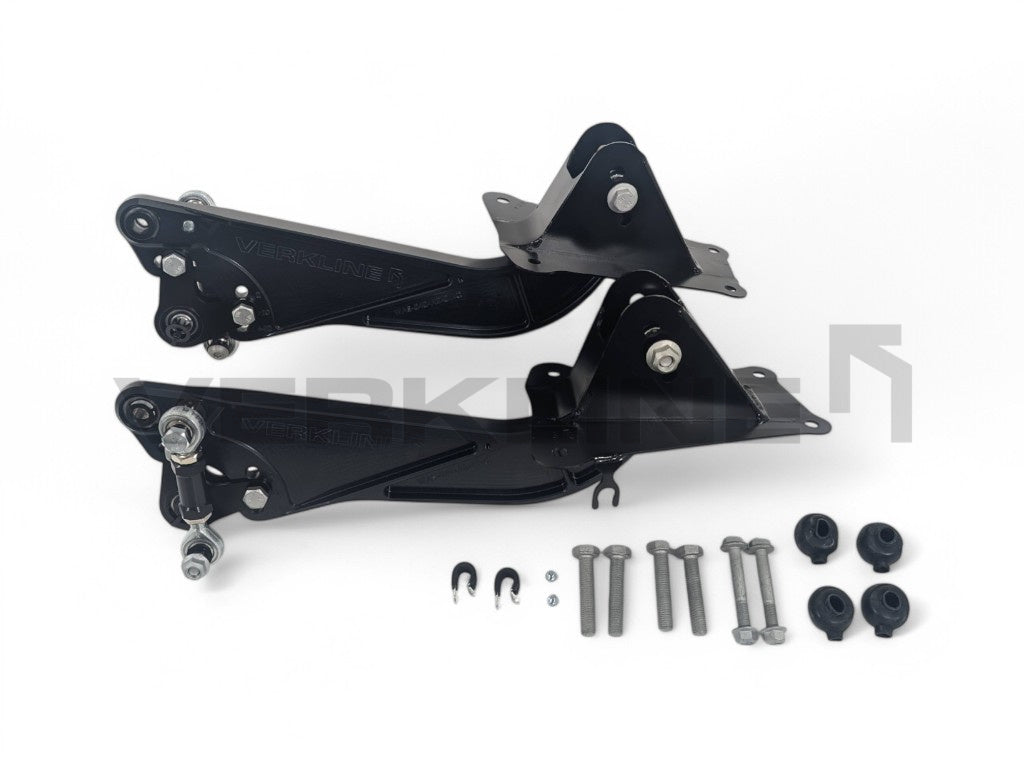

What is included:
– two aluminum wishbones anodized in black with spherical bearings
– two steel adjustment chassis mounting brackets in black
– two steel adjustment trailing arm steel bearing carriers in black
– two dedicated rear sway bar adjustable end links
– bolts
– printed install instructions

Used in cars (type numbers in brackets):

• 2003 – 2012 Audi A3/S3/RS3 (8P)
• 2004 – 2013 Audi TT/TTS/TTRS (8J)
• 2004 – 2012 Volkswagen Golf/GTI/R32 (Mk5, Mk6)
• 2005 – 2012 Seal Leon Mk2 (1P)

Replaces:
– 1K0505223K / 1K0 505 223K
– 1K0505224K / 1K0 505 224K

Note: Sold for off-road, track, and racing applications only. Installation of this rear trailing arm kit will introduce some additional NVH (noise, vibration, and harshness) transfer into the cabin.
